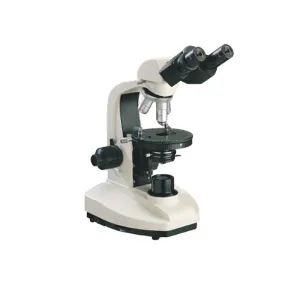

Polarizing Microscope PM20

Feature1. Equipped with large field eyepiece and achromatic objective lens, the field of view is large and clear.2. Coarse micro motion coaxial focusing mechanism, adjustable coarse motion elasticity, with limit locking device, micro motion grid value: 2um.3. 6V20W halogen lamp transmission illumination, adjustable brightness.

Get Quotes Now!

Inquiry

Description
Parameter Specifications

Feature

1. Equipped with large field eyepiece and achromatic objective lens, the field of view is large and clear.

2. Coarse micro motion coaxial focusing mechanism, adjustable coarse motion elasticity, with limit locking device, micro motion grid value: 2um.

3. 6V20W halogen lamp transmission illumination, adjustable brightness.

Item	PM230
Eyepiece	Widefield WF10X (Ø18mm)
Eyepiece Tube	Binocular/Trinocular, 30° Inclined
Objective Lens	Achromatic Objective 4X/0.10 Achromatic Objective 10X/0.25 Achromatic Objective 40X/0.65 (Spring) Achromatic Objective 100X/1.25 (Spring, Oil)
Analyzer	Sliding type
Focusing Mechanism	Coaxial coarse and fine focusing, fine graduation: 2µm, with lock and limit mechanisms
Nosepiece	Quadruple (Inward-facing with ball bearing)
Stage	Rotating stage (Diameter: Ø120mm)
Abbe Condenser	NA 1.25, vertically adjustable
Filter	Blue filter Ground glass
Polarizer	360° rotatable
Light Collector	Halogen lamp illumination
Illumination System	6V 20W Halogen lamp, adjustable intensity
