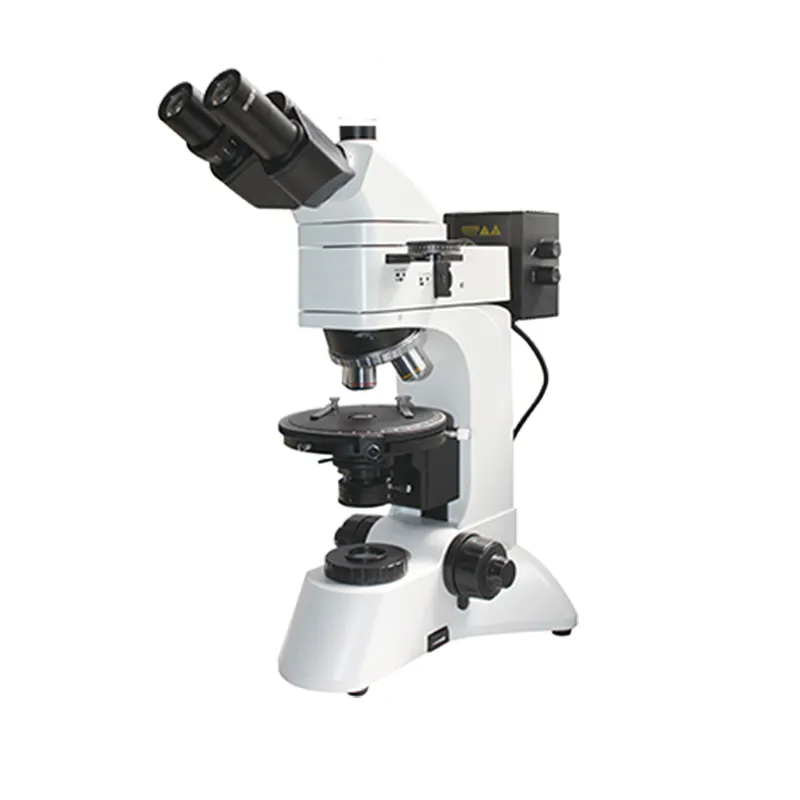

Polarizing Microscope PMX430

The PMX430 Polarizing Microscope is an essential instrument utilizing the polarization properties of light for the research and identification of birefringent materials. It allows users to perform single-polarization observation, orthoscopic observation with crossed polars, and conoscopic observation. It is applied in research and inspection within fields such as geology, chemical engineering, medicine, and pharmaceuticals, and can also be used for crystallographic phase observation of liquid polymer materials, biopolymers, and liquid crystal materials.

Get Quotes Now!

Inquiry

Description
Parameter Specifications

Feature

1. Equipped with infinity-corrected, stress-free, long working distance plan objectives.

2. Widefield Plan Eyepiece: Field of View Diameter Ø22mm

3. Rotating stage, with 360° evenly divided graduations, vernier scale value of 6 arc minutes, adjustable center, with locking mechanism. The stage vertical travel range is 30mm.

Item	PMX430
Eyepiece	Widefield 10X/22mm, with graticule 10X/22, graduation value 0.1mm/division
Eyepiece Tube	Hinged Trinocular Viewing Tube, 30° inclination, two-position light path splitting: Binocular/Trinocular ratio 100:0 or 0:100
Objective Lens	5X，10X，20X，60X
Nosepiece	Quadruple Inward-facing Nosepiece with Ball Bearing Positioning
Stage	Rotating Stage, Diameter Ø150mm, 360° evenly divided graduations with vernier value of 6', center adjustable, with locking mechanism
Focusing Mechanism	Coaxial Coarse and Fine Focusing, with limit and locking mechanisms, fine adjustment knob graduation: 2µm
Episcopic Illumination System	12V 30W Halogen Lamp, adjustable intensity, bulb centerable 5W LED Light Source, 6000K color temperature, adjustable intensity (Optional) Built-in Field Diaphragm & Aperture Diaphragm Filter Slider: Yellow, Blue, Green, Ground Glass Analyzer: 360°rotatable, with scale and fine vernier Polarizer: 360°rotatable
Intermediate Tube	Slider-type Bertrand Lens, centerable λ Compensator (Gypsum) λ/4 Compensator (Mica) Quartz Wedge Compensator
Transmitted Illumination System	12V 30W Halogen Lamp, adjustable intensity 5W LED Light Source, 6000K color temperature, adjustable intensity (Optional) Abbe Condenser, vertically adjustable, NA 1.25 Blue Filter Ground Glass Polarizer (360° rotatable, with 0°, 90°, 180°, 270° readings)
Camera Port	C-Mount Interface
